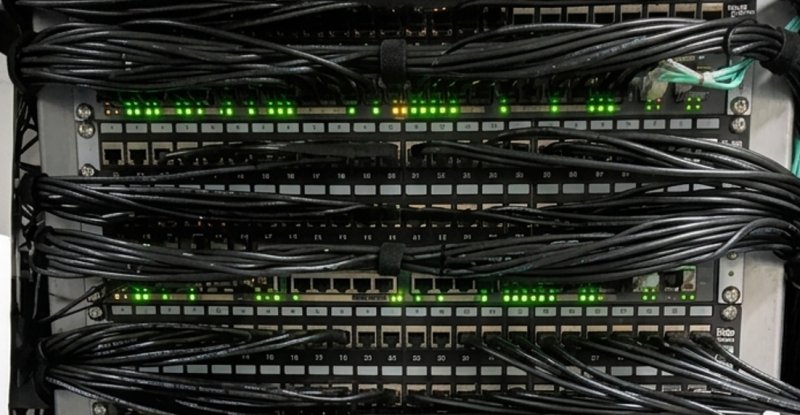

How to Choose Your RJ45 Patch Cords: Technical Guide for Structured LAN Cabling

RJ45 patch cord: from the Permanent Link to the last metre in the patch panel
every technical criterion counts

Designing a structured LAN network means making decisions whose consequences last 15, 20, or even 30 years: cable category, shielding, cable and outlet identification, patch management. The Permanent Link, the fixed section between the patch panel and the wall outlet, represents a significant investment whose performance determines long-term network operations. Alongside with it, RJ45 patch cords are the mobile elements, replaced more frequently, and yet critical for Ethernet transmission quality, patch panel maintainability, and the daily comfort of a network admin or a low-voltage installer.

This technical guide is designed for professionals who specify, purchase, or install RJ45 patch cords: IT network admins, design offices, low-voltage integrators, IT hardware distributors. It covers each genuinely discriminating criterion point by point: ISO/IEC 11801 or TIA/EIA-568 category, shielding (U/UTP, U/FTP, F/UTP, S/FTP), diameter and AWG gauge, POE++ (4PPoE) compatibility, and luminous identification systems, with a concrete recommendation at the end of the article.

1. Start with the Permanent Link: 15 to 30 years of investment to secure

The Permanent Link, the horizontal cable between the patch panel and the wall outlet plus the associated connectors, is not a consumable. It is designed to remain in place for 10, 15, or even 30 years. This justifies investing in the best cable and outlet quality compatible with the project budget.

As early as the 2000s, some companies installed CAT 7 cables even though outlets were still only CAT 6. The goal was to secure future bandwidth at 600 MHz and 10 Gb/s on a cabled infrastructure that would not be removed for a long time. The PiMF S/FTP cable is the archetype of this choice, and those installations are still operational today, running as CAT 6A 10 Gigabit, more than 25 years after installation.

Today, the most common standard for a Permanent Link remains CAT 6A (100 m, 10 Gb/s, 500 MHz). CAT 7 in the Permanent Link, paired with CAT 6A RJ45 patch cords, is the premium choice for performance and investment lifespan. CAT 7 uses proprietary connectors (GG45 or TERA) that are rarely found on active equipment, making this option difficult to implement in standard enterprise LAN networks. CAT 8 (2,000 MHz, 25-40 Gb/s over 30 m) is reserved for short datacenter links and has the advantage of using RJ45-type connectors, compatible with all commercially available active equipment.

Permanent Link cable category summary

Key takeaway: for a new Permanent Link, the rational target is CAT 6A. For a project with high long-term value requirements over 20 years, CAT 7 remains a valid choice for the Permanent Link paired with CAT 6A RJ45 patch cords.

2. ISO/IEC 11801 or TIA/EIA-568 category: two standards, one vocabulary to master

Two standards coexist to define the performance of passive components in a LAN network. The European standard ISO/IEC 11801 uses classes (Class A to Class I). The American standard TIA/EIA-568 uses categories (Cat 1 to Cat 8). Both standards describe the same performance families under different nomenclatures: CAT 6A TIA corresponds to ISO Class EA, CAT 8 TIA corresponds to ISO Class I.

CAT 7 ISO has no direct TIA equivalent, because TIA-568 only covers standard RJ45 patch cords. CAT 7 and CAT 8.2 use proprietary GG45 or TERA connectors. In the purchasing volumes of network admins in 2026, CAT 5e now represents only a residual share. The bulk of the RJ45 patch cord market is concentrated on categories 6 and 6A, with a clear shift towards CAT 6A driven by 10 Gb/s deployments and POE++ (4PPoE) compatibility.

Operational tip: if your Permanent Link has remained at CAT 5e or CAT 6, replacing the connection cords and patch cords with CAT 6A noticeably improves the overall link performance without touching the horizontal cabling.

3. RJ45 patch cord shielding: U/UTP, U/FTP, F/UTP, S/FTP

The shielding of an RJ45 cable protects the twisted pairs against electromagnetic interference (EMI): disturbance from a nearby 220 V mains cable, transformer radiation, variable-speed drives, fluorescent tubes, motors. In theory, a shielded cable maintains better signal quality and reduces frame losses. In practice, the choice is made according to several combined criteria.

The rational first step: align the shielding of the RJ45 patch cord with the Permanent Link. If the horizontal cabling is laid as unshielded U/UTP, as is the rule in the United States, the United Kingdom, Ireland, Spain, Italy, and the majority of Benelux, then U/UTP patch cords are the natural choice. Shielding patch cords on an unshielded infrastructure adds nothing and unnecessarily clutters the patch panel.

Shielded and unshielded practices are partly cultural and vary by country:

• Germany (DE) and Austria (AT): overwhelming majority of shielded cabling (S/FTP, U/FTP, F/UTP). The philosophy is to systematically protect Ethernet frames against any interference.
• France (FR) and Switzerland (CH): approximately 70% shielded, 30% unshielded. Both approaches coexist depending on project managers.
• USA, UK, Ireland, Spain, Italy, Benelux (BE, NL): predominantly U/UTP. These markets rely on the Ethernet protocol, which retransmits frames not correctly received. Useful throughput is marginally affected, but end users practically never notice it.

Over a total link of 100 m, if a single RJ45 patch cord of 2 to 5 m is not shielded, any electromagnetic disturbances only affect a very short fraction of the link, imperceptible in practice.

The key argument on shielded infrastructures: a single earth connection, no ground loop. If both ends of the link are shielded and earthed, a slight potential difference may exist between the wall outlet earth and the switch earth. This difference creates a loop current that can degrade the signal and, paradoxically, generate noise. The recommended pragmatic rule on a shielded infrastructure is therefore:

• A single earth connection, at the wall outlet (on the user side).
• Shielded connection cord on the end-user side, for mechanical resistance to chair wheels and repeated bending.
• Unshielded U/UTP SLIM RJ45 patch cord on the rack side: earth continuity interrupted, no loop, optimal slimness.

Result: controlled earth continuity, no ground loop, slimmer and more flexible patch cord, better-ventilated patch panel.

4. Diameter and flexibility: why SLIM has become the standard in the patch panel?

Any professional working in a patch panel knows that a slim and flexible RJ45 patch cord delivers compounding benefits: less space taken up in cable managers and guides, better readability of the patch panel face, better rack ventilation critical on POE++ switches dissipating several tens of watts, and faster interventions with less risk of disturbing adjacent cords.

The final diameter of an RJ45 cable depends on three factors: jacket material, the presence or absence of shielding, and the AWG gauge (American Wire Gauge) that defines the copper cross-section of the conductors. The higher the AWG figure, the less copper, and therefore the slimmer the cable. A standard RJ45 patch cord is AWG 24; a SLIM cord goes down to AWG 26 or AWG 28.

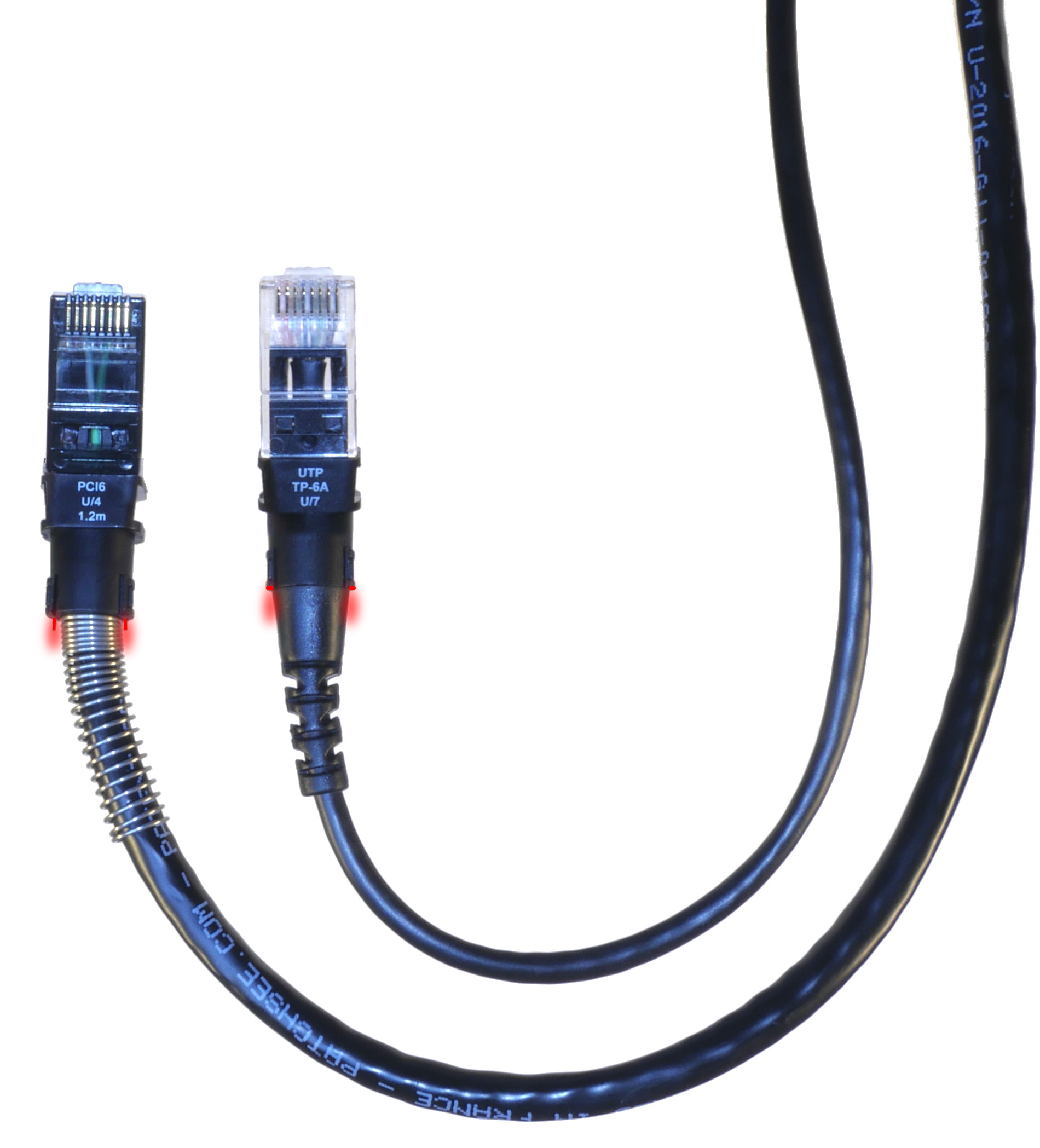

SLIM patch cords are patch cords with an external diameter under 4.0 mm. At equal CAT 6A performance, a standard cord measures approximately 6.5 mm in diameter (AWG 24) versus under 4.0 mm for SLIM. The volume saving in the rack is spectacular: SLIM cords occupy approximately three times less space than standard cords. They are also far more flexible, facilitating tight patching and reducing mechanical stress on connectors.

The ThinPATCH range from 3P Design is certified CAT 6A and compatible with 4-pair Power Over Ethernet systems, meaning POE++ (4PPoE) compliant with IEEE 802.3bt (Types 3 and 4, up to 90 W at source). This is decisive for powering WiFi 6 and WiFi 7 access points, high-performance IP cameras, advanced SIP phones, and low-power charging terminals. The transition from CAT 6A AWG 24 to CAT 6A AWG 28 slim requires rigorous dimensioning of twisted pairs and plug electrical contacts, which ThinPATCH meets within the framework of the standard.

5. RJ45 patch cord identification in the patch panel: the criterion that costs time on every intervention

In a 42U patch panel concentrating more than 200 RJ45 cables in under one square metre, quickly identifying both ends of a patch cord is a daily challenge. Without an identification system, the classic scenario unfolds: progressive extraction of the cord from cable guides, manual finger-tracing, risk of error, and disturbance of adjacent cords. Paper or plastic labelling remains a partial solution: tedious to apply, quickly illegible from the front, requiring cable-by-cable reading.

Colour-coded cords: first-level identification

Colour-coded RJ45 patch cords enable first-level application coding: data, IP telephony, CCTV, access control, fire alarm, or geographic zone coding. The logistics constraint is real: stock references must be multiplied (one colour per length), which puts pressure on IT hardware distributors and network admins.

Removable PatchCLIP colour clips: the flexible alternative

A more pragmatic approach: removable colour clips that mount on the connector boots. 3P Design offers PatchCLIP in 16 colours, with two clips per cord, one at each end. PatchCLIPs serve a dual purpose: colour coding and protection of the RJ45 plug locking tab, which is often snapped during cord extraction from cable guides. A single cord stock, 16 codes available on demand, without multiplying references.

PATCHSEE luminous identification system: find the other end without unplugging

The most demanding challenge in a patch panel remains identifying the second end of an RJ45 cord: from the panel, where is it patched on the switch? From the switch, which workstation is using this port? Without an adapted tool, you have to pull on the cord and finger-trace it, with all the associated risks of error and disorganisation.

The PATCHSEE system, patented by 3P Design, solves this cable management challenge without unplugging any cord. The principle: two plastic optical fibres bent at 180 degrees integrated into the connector and the RJ45 plug boot. The operator positions the light injection tool (the PatchLIGHT) against the rear of the boot at one end; the light exits visibly at the other end of the cord. No electrical current injected, no interference on the Ethernet twisted pairs, no impact on Return Loss or NEXT. 100% passive technology, compliant with ISO/IEC 11801 and TIA/EIA-568 standards.

The PATCHSEE system equips the PATCHSEE, ThinPATCH, and DirectPATCH ranges, in lengths from 15 cm to 30 m. See our comparison between LED patch cords and "patchsee system"

LED RJ45 patch cords: the active alternative, with reservations

A decade after PATCHSEE appeared came electrically-powered LED RJ45 patch cords: cords with an external tool such as the saCon DualBoot that powers the LEDs via pins on the rear face of the connectors, and cords with an integrated button cell in the boot such as EVO. Three technical reservations must be kept in mind:

• To carry current between both ends, the manufacturer adds an electrical wire inside the Ethernet cable and uses the ground drain as the return conductor on shielded variants. This falls outside the framework defined by ISO/IEC 11801 and TIA/EIA-568 standards.
• The boots are wider than the RJ45 plug itself due to the LED housing, making them incompatible with high-density environments (48-port 1U switches, high-density patch panels).
• The removable colour clips are tiny (approximately 7x2x1.5 mm), barely visible in a loaded rack, and sometimes non-existent on models with an integrated cell.

Boot marking: reference and length

All PATCHSEE, ThinPATCH, and DirectPATCH cords carry the product reference for restock orders and the exact cord length on the boot. Valuable daily information: a cord marked 1.5 m stays in the same rack; a cord marked 10 m is probably going to an adjacent rack.

6. Use case summary: which configuration for which LAN network?

On an unshielded U/UTP network architecture (USA, UK, IE, ES, IT, Benelux, part of FR/CH), the recommended choice in the patch panel is: U/UTP SLIM CAT 6A RJ45 patch cords with a 3.8 mm diameter (ThinPATCH range), AWG 28 gauge compatible with POE++ (4PPoE), integrated PATCHSEE luminous identification system, and PatchCLIP in 16 colours for application coding.

On a shielded network architecture (DE, AT, part of FR/CH): a single earth connection at the wall outlet, shielded U/FTP connection cord on the end-user side for mechanical resistance, SLIM RJ45 patch cord in the rack (U/UTP ThinPATCH 3.8 mm or U/FTP ThinPATCH 4.5 mm depending on the site policy), PATCHSEE luminous identification and zone coding with PatchCLIP. This configuration ensures earth continuity without creating a ground loop, while keeping the patch panel well-ventilated and easy to operate.

7. Against the market alternatives: what differentiates ThinPATCH and PATCHSEE?

Three main patch cord families coexist in LAN network cable management. Standard colour-coded CAT 6 and CAT 6A cords (all generalist brands) offer colour-only identification with a heavy logistics stock burden. LED RJ45 patch cords (saCon DualBoot, EVO) offer active luminous identification at the cost of normative compromises and mechanical constraints: wide boot incompatible with high-density equipment, electrical wires added inside the cable. Retractable cords such as PatchBox solve variable lengths between the switch and patch panel within a single rack, but not cord identification across the LAN network. The Ubiquiti ecosystem (UniFi: router, switch, WiFi access point, telephony) offers standard accessory patch cords without any luminous identification system.

PATCHSEE and ThinPATCH are the only solution that simultaneously combines: certified CAT 6A, SLIM 3.8 mm U/UTP, POE++ 4PPoE compatibility, passive luminous identification compliant with ISO/IEC 11801 and TIA/EIA-568 standards, 16 PatchCLIP colour clips protecting the RJ45 plug tab, integrated bend radius strain reliever, and reference plus length marking on every boot. All this in lengths from 15 cm to 30 m with 30 cm steps up to 3 m.

8. Conclusion: the simple rule for choosing your RJ45 patch cord

For any new structured LAN cabling project: on an unshielded architecture, U/UTP SLIM CAT 6A patch cords in the rack for smooth operations. On a shielded architecture, a single earth connection at the wall outlet, shielded connection cord on the user side, SLIM patch cord in the rack. In all cases, a luminous identification system to locate both ends without unplugging, and removable colour clips for application coding.

The best way to test these choices on your own patch panel is to try them under real conditions. Request your free ThinPATCH demonstration kit to evaluate CAT 6A SLIM 3.8 mm, POE++ compatibility, PATCHSEE luminous identification, and PatchCLIP in 16 colours on your LAN network infrastructure.
