Patchsee

CATEGORY 8.1 RJ45 PATCH CORDS WITH OPTICAL FIBER IDENTIFICATION: PATCHSEE CAT8

Up to 40 Gb/s - 2000 MHz - Lengths up to 30 m

CAT8 performance with PATCHSEE optical fiber identification

PATCHSEE CAT8 RJ45 patch cords combine Category 8.1 performance with the PATCHSEE optical fiber identification technology. Designed for connections between network equipment, patch panels and user outlets, they meet the requirements of very high-speed network infrastructures.

They are certified for applications up to 40 Gb/s and transmission frequencies up to 2000 MHz. They conform to Cat. 8.1 according to TIA/EIA-568.2-D and ISO/IEC 11801-2:2017 + Amd 1.

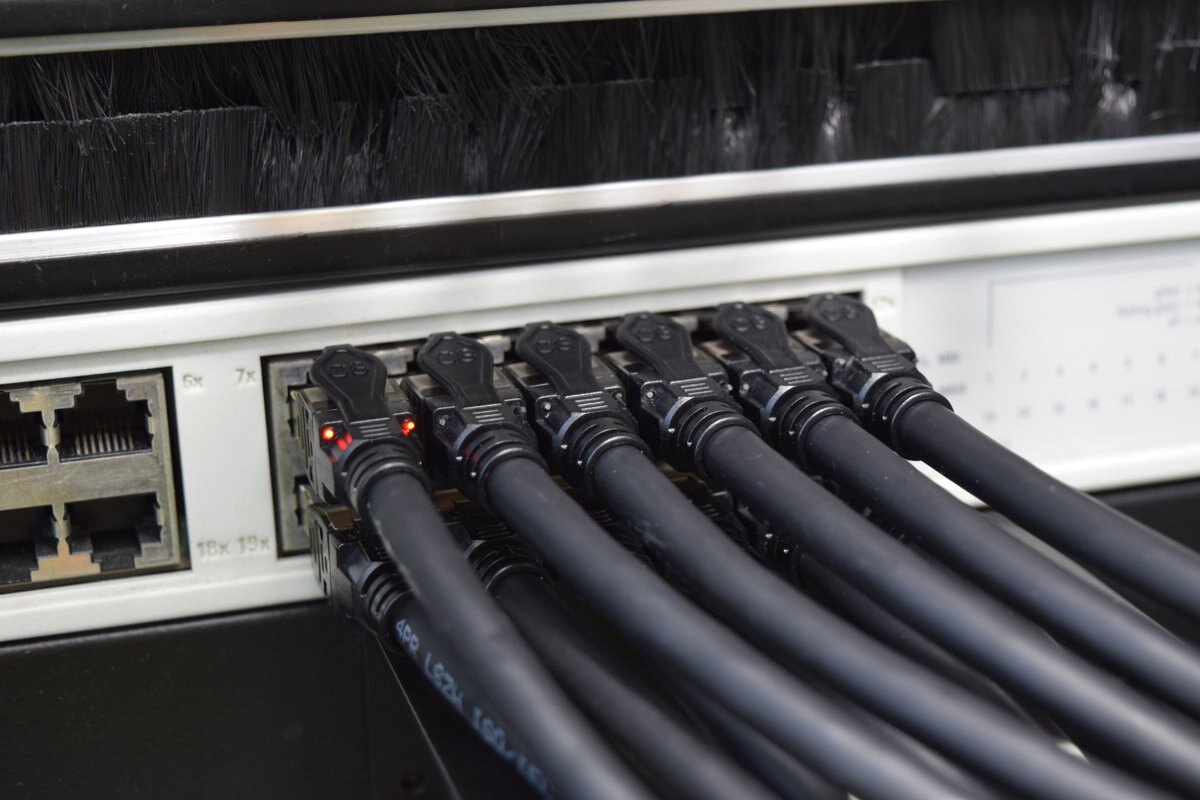

PATCHSEE CAT8 patch cords with optical fiber identification in a patch panel

Spot your connections at the speed of light

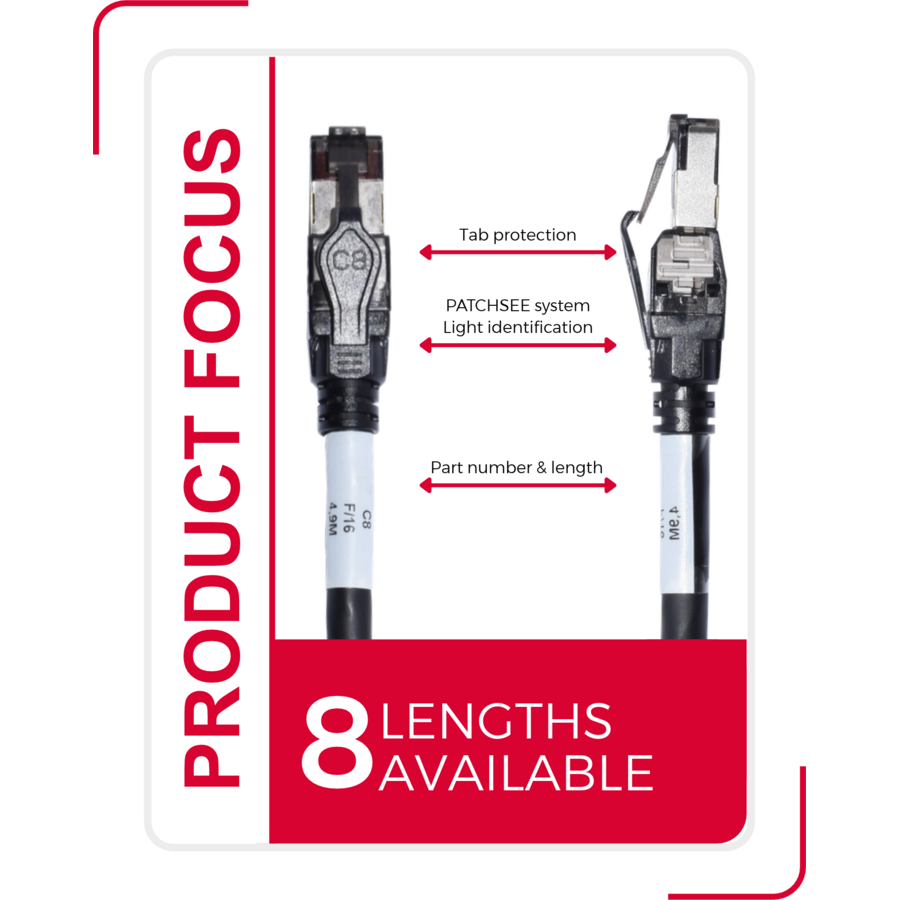

The CAT8 patch cord integrates two plastic optical fibers, making it possible to quickly identify a link in a cabinet or patch panel. By lighting one end of the patch cord with the "patchsee system", the other end can be spotted instantly, without having to physically trace the cable.

This visual identification makes maintenance operations easier and helps to reduce connection and disconnection errors.

A patch cord designed for very high-speed networks

Lengths available from 1.2 m to 30 m:

Feet 471016326682100
m 1.22.13.04.99.820.125.030.0

For cables <5 m: tested and validated according to TIA/EIA-568.2-D + ISO/IEC 11801-2:2017 + Amd 1.

For cables >5 m and up to 30 m, performance tested and validated in a CAT8 Channel, as a direct equipment-to-equipment cable.

  • Each patch cord is individually tested
  • Black LSOH sheath
  • PoE, PoE+ and 4PPoE compatible up to 100 W
  • 5 year guarantee on all manufacturers' cabling systems (interoperability)
  • Supplied with 2 PLUgCAP connector protections

Individually tested patch cords

Each PATCHSEE CAT8 patch cord is individually checked to verify its transmission performance. This approach combines the performance expected from a CAT8 network with the ease of identification specific to the PATCHSEE system.

In addition, each patch cord is identified by a unique serial number.

For demanding network infrastructures

With its 40 Gb/s capability, U/FTP shielding, pure copper conductors and integrated optical fiber identification system, PATCHSEE CAT8 is intended for environments where network performance and fast interventions are essential: data centers, computer rooms, patching cabinets and high-density network infrastructures.

Product part numbers and packaging

The PATCHSEE CAT8 range is available in several part numbers corresponding to the different lengths available, to suit the cabling and patching needs of each installation.

  • C8-F/x for category 8 U/FTP RJ45 cable, where x is the length in feet, 8 standard lengths
  • Packaging: sold individually

For this range, patch cords can also be sold individually. This packaging makes it possible to order exactly the length and quantity required, whether for a complete installation, a replacement, an extension or a one-off need.
